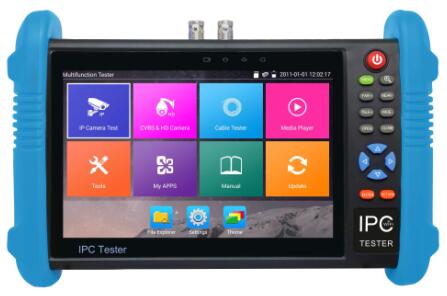

7 inch IP camera tester M-IPC-600A with analog
Analog camera test
IP camera test, support onvif, 4K, H.264 and H.265
PoE 24W power supply to IP camera
DC12V 2A power output for camera
| Model Number | M-IPC-600A |
| Signal System | NTSC / PAL (Auto-Selecting) |
| Display | New 7 inch IPS touch screen, 1920*1200 resolution |
| IP camera type | 4k, H264, H265, Onvif, OnvifPTZ, ACTi, Dahua IPC-HFW2100P, Hikvision,DS-2CD864-E13, Samsung SNZ-5200, Honeywell HICC-2300T, etc. Customized protocols are available |
| Rapid Video | Auto view the video, create testing report |
| Hikvision test tool | pressing just one key to activate hikvision camera, Image test, can modify the user name, password and IP parameters |
| Dahua test tool | Dahua camera test, modify the user name, password and IP parameters |
| Network test | FTP Server, Static IP address, DHCP, simultaneously test different segments´ IP cameras, Network bandwidth testing, IP discovery |
| IP camera apps | Support video management software to view IP camera image, such as Hikvision ivms-4500, Dahua gDMSS HD Lite |
| RTSP | Support RTSP to view IP camera image |
| LCD adjust | Adjustable brightness, contrast, color of LCD |
| Network port | 10/100M auto adjust, RJ45 |
| Wifi | Built in Wifi, speeds 150M, receive wireless camera image etc. create wifi hotspot |
| PoE power output | PoE 24W power supply to IP camera |
| Video Input / Output | 1 channel BNC input & 1 channel BNC looped output |
| Video Output Mode | 1.0 Vp-p |
| CVBS loop test | the tester send and receive color bar generator signal to check BNC cable |
| Power Adapter | 5V DC, 2A input supply |
| Power output | 12V DC, 2A power output for camera |
| Audio input | 1 channel audio signal input to test pickup device, 1 channel audio signal output to connect headphone |
| USB power output | USB 5V 2A power output to mobile phone |
| Communication | RS485 |
| Baud Rate | 150, 300, 600, 1200, 2400, 4800, 9600, 19200bps |
| Power Saving Features | Sleep mode, Battery level indicator |
| PTZ Address Scanning | Scan for local PTZ address over data cables |
| Rechargeable Battery | 6 hours charge, work for 10 hours |
| Battery | 1 pcs Lithium Ion Polymer Battery; 7.4V DC, 5000mAh |
| Video Display | Displays video signal from analog input |
| Video Signal | Color bar generator for monitor testing |
| Cable Test | Checks connections of UTP cables, RJ45 cable TDR test |
| PTZ Protocol | Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, TeleEye etc. |
| PTZ data Capture | Reads and displays commands sent from controllers |
| Image 4x zoom | 4x zoom image display and video out |
| Photograph | Snapshot and save the image as JPG file and screenshot |
| Video record | Video recording and playback from the SD card |
| Port Finder | Find the connected PoE port quickly |
| IP scan | Find out the connected IP camera or network equipment´s IP address |
| Link monitor | Check the IP address whether is occupied |
| Ping testing | Network and Ip camera´ping testing |
| PoE tester | PoE voltage testing, PoE port flicker, PoE link monitoring |
| Night Led | Built Led lamp |
| SD card | With 8G Micro SD card, support Micro SD card for recording, max support 32G SD card |
| Tester Play | screen projection：tester, mobile phone and PC display at the same time (For android version mobile phone) |
| Drop-down menu | User can select PoE power switch, IP setting, WLAN switch, etc in any interface |
| Dimension | 240mm x 158mm x 44mm (Tester); 320mm x 290mm x 98mm (Colour box) |
| Weight | 1000g (Tester); 2565g (Tester with spare parts, black package, box) |
