Model number　　　　　　　　

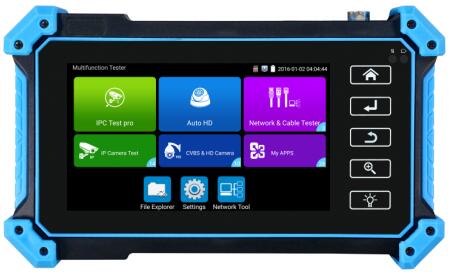

　　　　　　　　　　　　　　　 　 M-IPC-520D

Screen

Display

5.4 inch IPS touch screen, 1920 x 1152 resolution

Video Mode

CVBS

1 channel BNC input, NTSC/PAL (Auto adapt)

PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc

IP Camera Test

4K / H.265 / H.264

IP Discovery / Quick ONVIF / IPC test / RTSP play / Client APK

Rapid Video

Auto view the video, create testing report

Hikvision test tool

support batch activate Hikvision cameras and modify IP address, modify password etc. Self-defined modify channel name, can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc.

Dahua test tool

support batch activate Dahua cameras and modify IP address, username and password. Self-defined modify channel name.

HD Coaxial test

8MP TVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control / call OSD menu

8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control / call OSD menu

8MP AHD camera test, 3840 x 2160P 15FPS, UTC control / call OSD menu

Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record & playback, coaxial PTZ & call OSD menu

HDMI input

1 channel HDMI input, support 4K 30FPS. The resolution as follow:
4K_3840 x 2160/ 2K_2560 x 1440P / 1920×1080P / 1920×1080i / 720×480P / 720×576P / 1280×720P / 1024×768P / 1280×1024P / 1280×900P / 1440×900P, etc

VGA input

1 channel VGA input, support 1920 x 1200P 60FPS. The resolution as follow:
1920×1080P 60FPS / 1792×1344P 60FPS / 1680x 1050P 60FPS / 1600x1200P/900P 60FPS / 1440x900P 60FPS / 1360x768P 60FPS / 1280x1024/960/800/768/720P 60FPS / 1152x870P 60FPS / 1024x768P 60FPS / 800x600P 60FPS / 600x480P 60FPS

Zoom Image

4x zoom, to enlarge image, screen snapshot, record, save, view and record and play back

Power output

12V / 3A power

Output DC12V/3A power out, supply temporarily power for the camera

PoE power output

48V PoE power output, max power 25.5W

Cable test

UTP cable test

Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head.

Cable tracer app with toner wand

Send the specific signal, easy to find out the connected cable from messy cables

RJ45 TDR cable test

Test cable pair status, length, attenuation, reflectivity, impedance, skew, can create test report. measurement range 180M

Tester Play

Screen projection: Tester, mobile phone and PC display at the same time (For android version mobile phone)

Network test

Trace route, Link monitor, DHCP server, port flashing, Ping test

Wi-Fi

Built in WIFI, speeds 150M, display wireless camera image

Audio test

1 channel audio signal input, test whether sound normal.

Power management

Display DC 12V input & output voltage and power in real time

Data monitor

Captures and analyzes the command data from controlling device, also can send hexadecimal

Power supply

DC 12V 1A

Battery

Built-in 7.4V Li-ion battery, 3350mAh

Rechargeable

After charging 3-4 hours, normal working time 6 hours

Operation setting

OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech etc

Auto off

1-30 (mins)

Working Temperature

-10℃ - +50℃

Working Humidity

30% - 90%

Dimension

183mm x 110mm x 40mm (Tester);　255mm x 140mm x 98mm (Colour box)

Weight

330g (Tester);　1040g (Tester with spare parts, black package, box)
