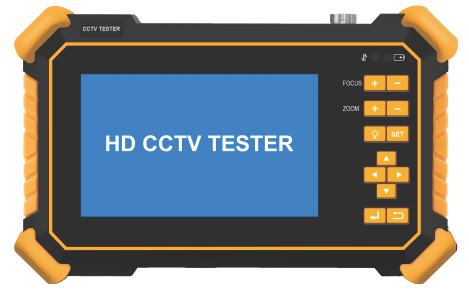

4.3 inch HD camera tester M-HD-290A with CVBS, HD-TVI, HD-CVI, AHD
CVBS camera test, PTZ control
8MP TVI test, 8MP CVI test, 8MP AHD test
DC12V / 1A power output
Audio in, Coaxial PTZ control
Specification:
| Model | M-HD-290A |
| Display | 4.3 inch TFT-LCD screen, 480 * 272 resolution |
| CVI video signal test | 8MP CVI camera test, 3840 x 2160P 12.5 / 15FPS, UTC control / call OSD menu |
| TVI video signal test | 8MP TVI camera test, 3840 x 2160P 12.5 / 15FPS, UTC control/ call OSD menu |
| AHD video signal test | 8MP AHD camera test, 3840 x 2160P 15FPS, UTC control / call OSD menu |
| HD camera test | HD app, auto recognize HD coax camera type and resolution, support coaxial PTZ & call OSD menu |
| CVBS video signal test | 1 channel BNC input, NTSC/PAL (Auto adapt) |
| DC 12V/1A power output | DC12V/1A power output, supply temporarily power for the camera |
| Audio test | 1 channel audio signal input |
| Battery | Built-in 3.7V Li-ion battery, 4000mAh |
| Rechargeable | After charging 5 hours, normal working time 7 hours. The maximum charging current of the battery is 1.67A, and 5V 2A charger is standard++. |
| Operation setting | OSD menu, select your desired language: English, Portuguese, Russian, Italian, French, Polish, Spanish, Japanese, Turkish, Deutsch etc |
| WorkingTemperature | -10℃ ～ +50℃ |
| Working Humidity | 30% - 90% |
| Dimension | 160mm x 100mm x 45mm (Tester); 205mm x 162mm x 76mm (Colour box) |
| Weight | 350g (Tester); 850g (Tester with spare parts, black package, box) |
