    M-IPC-750 series

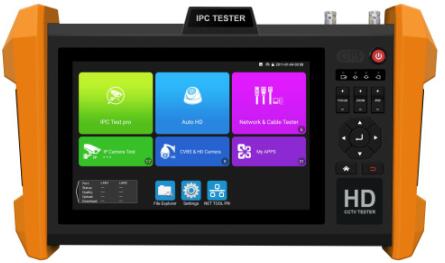

7 inch IP Camera Tester M-IPC-750C

Cvbs camera test, VGA input
IP camera test, support onvif, 4K, 8K, H.264 and H.265
8MP CVI, 8MP TVI, 8MP AHD camera test, support TVI 5.0 Audio test
DC12V 3A, DC24V 2A and 48V / 30W PoE power output

Specification:

LCD

Model Number

M-IPC-750C

Display

New 7 inch IPS touch screen, 1280*800 resolution

Video Mode

CVBS

1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)

PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc

IP camera test

8K H.265 / 4K H.264

IP Discovery / Quick ONVIF / IPC test / RTSP play / Client APK

Rapid Video

Auto view the video, create testing report

Hik test tool

support batch activate HIKVISION camera and modify IP address, modify password etc. Self-defined modify channel name, can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc.

Dahua test tool

support batch activate DAHUA cameras and modify IP address, username and password. Self-defined modify channel name.

IP & CVBS test

IP & CVBS test at the same time, converter test from analog to digital with dual test window

Coaxial HD test

8MP TVI camera test, 3840 x 2160P 15 FPS, UTC control & call OSD menu, support TVI 5.0 Audio test

8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control & call OSD menu

8MP AHD test, 3840 x 2160P 12.5/15 FPS, UTC control & call OSD menu

VGA input

Up to 1280*800 60FPS

Zoom Image

4x zoom, enlarge image, screen snapshot, record, save, view and record and play back

Power output

PoE power output

48V PoE power output, max power 30W

DC24V / 12V power

DC24V 2A, DC12V 3A power output

DC 5V power

DC5V 2A power output, can connect USB camera, USB and Mouse, as power bank

Cable test

UTP cable test

Test UTP cable connection status and display on the screen. Read the number on the screen,and detect near-end, mid-end and far-end fault test of RJ45 cable plug

RJ45 cable TDR test

Test cable pair status, length, attenuation, reflectivity, impedance, skew etc., measurement max range 180M.

TesterPlay

Screen projection: Tester, mobile phone and PC display at the same time (For android version mobile phone)

Network test

Trace route, Link monitor, DHCP server, port flashing, Ping test

Wi-Fi

Built in WIFI, speeds 150M, display wireless camera image

Audio test

1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone

Data monitor

Captures and analyzes the command data from controlling device, also can send hexadecimal

PSE / PoE test

Measurement PoE switch or PSE power supply voltage and cable connection status

Drop-down menu

You can select PoE power switch, IP setting, CVBS, LAN info, etc in any interface

External power supply

DC 12V 2A

Battery

Built-in 7.6V Lithium polymer battery, 7800mAh

Rechargeable

After fast charging 3.5 hours, normal working time 16 hours

Operation setting

OSD menu, select your desired language: English, Portuguese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Turkish, Deutsch, Serbain, Czech, Vietnamese etc

Auto off

5-30 (mins)

Working Temperature

-10 --- +50

Dimension

276mm x 163mm x 44mm (Tester); 345mm x 305mm x 100mm (box)

Weight

1200g (Tester); 2550g (Tester with spare parts, black package, box)
