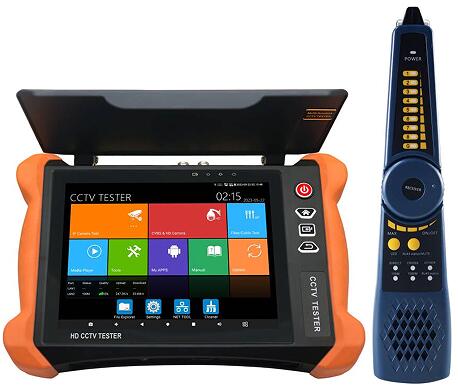

8 inch IP camera tester M-IPC-840D with analog, HD-TVI, HD-CVI, HD-SDI, AHD, cable tracer app with toner wand, anti-sunlight and screen protecting cover, 90W PoE power output.
Analog camera test
IP camera test, support onvif, 4K, 8K, H.264 and H.265
HD-TVI camera test, HD-CVI camera test, AHD camera test
1080p HD-SDI, 3G-SDI and EX-SDI camera test
Cable tracer app with toner wand
DC12V 2A Power output / 90W PoE power output
RJ45 cable TDR test, cable quality test
HDMI input, support 1080p; HDMI output, support 4K
Video level meter for analog camera, TVI camera, CVI camera, AHD camera
Dual 1000M Ethernet ports, 4 channel Onvif video simultaneous display
Anti-sunlight and screen protecting cover
Specification:
|
Model Number |
M-IPC-840D |
| Signal System |
NTSC / PAL (Auto-Selecting) |
| Display |
8 inch retina touch screen, 2048*1536 resolution |
| IP camera type |
4K, 8K, H264, H265, Onvif, Onvif PTZ, ACTi, Dahua IPC-HFW2100P, Hikvision, DS-2CD864-E13,
Samsung SNZ-5200, Honeywell HICXC-2300T, etc. Customized protocols are
available |
| Rapid Video |
Auto view
the video, create testing report |
| Hikvision
test tool |
Pressing
just one key to activate hikvision camera , Image test, can modify the user
name, password and IP parameters |
| Dahua
test tool |
Dahua
camera test, modify the user name, password and IP parameters |
| Network test |
FTP Server, Static IP address, DHCP,
simultaneously test different segments´ IP cameras, Network bandwidth
testing, IP discovery |
| IP camera apps |
Support video management software to view
IP camera image, such as Hikvision ivms-4500, Dahua gDMSS HD Lite |
| RTSP |
Support RTSP to view IP camera image |
| LCD adjust |
Adjustable brightness, contrast, color of
LCD |
| HDMI input |
1 channel HDMI input, support
1080P |
| HDMI signal output |
1 channel HDMI
output, support 1080P |
| Network
port |
10/100/1000M
auto adjust, RJ45 |
| Wifi |
Built
in Wifi, speeds 150M, receive wireless camera image etc. create wifi hotspot |
| PoE power output |
PoE 90W power supply to IP camera |
| Video Input / Output |
1 channel BNC input & 1 channel BNC
looped output |
| Video Output Mode |
1.0 Vp-p |
| CVBS
loop test |
the tester send and receive color bar generator signal to check
BNC cable |
| Cable tracer app with toner wand |
Send the specific signal, easy to find out
the connected cable from messy cables |
| Video level meter for analog, TVI, CVI, AHD
cameras |
Peak video signal level, SYNC signal level,
Color bar chroma level measurement |
| Power Adapter |
15V DC, 1.6A input supply |
| Power output |
12V DC, 2A power output for camera |
| Audio input |
1 channel audio signal input to test pickup
device, 1 channel audio signal output to connect headphone |
| USB power output |
USB 5V 2A power output to mobile phone |
| Communication |
RS485 |
| Baud Rate |
150, 300, 600, 1200, 2400, 4800, 9600,
19200bps |
| Power Saving Features |
Sleep mode, |
| PTZ Address Scanning |
Scan for local PTZ address over data cables |
| Rechargeable |
2.5 hours charge, work for 10 hours |
| |
1 pcs Lithium Ion Polymer Battery; 11.1V,
3350mAh |
| Video Display |
Displays video signal from analog input |
| Video Signal |
Color bar generator for monitor testing |
| Cable Test |
Checks connections of UTP cables, RJ45
cable TDR test |
| PTZ Protocol |
Compatible with more than 30 protocols such
as PELCO-D/P, Samsung, Panasonic, TeleEye etc. |
| PTZ data Capture |
Reads and displays commands sent from
controllers |
| Image 4x zoom |
4x zoom image display and video out |
| Photograph |
Snapshot and save the image as JPG file and
screenshot |
| Video record |
Video recording and playback from the SD
card |
| Port Finder |
Find the connected PoE port quickly |
| IP scan |
Find out the connected IP camera or network
equipment´s IP address |
| Link monitor |
Check the IP address whether is occupied |
| |
Network and Ip camera´ping testing |
| PoE tester |
PoE voltage testing, PoE port flicker, PoE
link monitoring |
| Night Led |
Built Led lamp |
| SD card |
With 8G |
| Tester Play |
Screen projection：tester, mobile phone and PC display at the same time (For android
version mobile phone) |
| Drop-down menu |
User
can select PoE power switch, IP setting, WLAN switch, HDMI IN functions etc
in any interface |
| HD-TVI input |
8MP TVI camera test, 3840 x 2160, 15 FPS, image display, zoom,
video record and playback, coaxial PTZ control and call camera OSD menu |
| HD-CVI input |
8MP CVI camera test, 3840 x 2160, 12.5/15 FPS, image display,
zoom, video record and playback, coaxial PTZ control and call camera OSD menu |
| AHD input |
8MP AHD camera test, 3840 x 2160, 15 FPS, image display, zoom,
video record and playback, coaxial PTZ control and call camera OSD menu |
| HD SDI/EX-SDI input |
HD-SDI / EX-SDI camera test, support 1080P
50/60 FPS |
| Dimension |
270mm x 180mm x 44mm (Tester); 345mm x 305mm x 100mm (Colour box) |
| Weight |
1200g (Tester); 3200g (Tester with spare parts, black package, box) |
