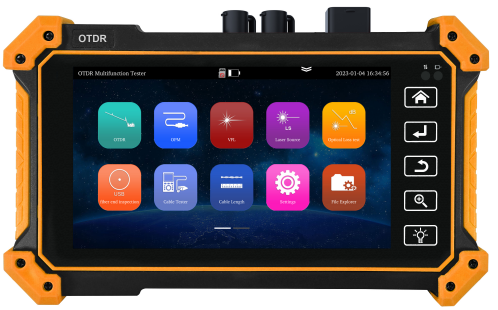

5.55 inch OTDR tester M-OTDR-500D with 1550nm wavelength, 24dB dynamic range
Optical power meter, visual fault locator
Laser source, optical loss test, cable tester
Optical Time Domain Reflectometer
Cable tracer app with toner wand
Cable length, RJ45 cable TDR test
PING, IP scan, LLDP, PPPOE, FTP server
Specification:
| Model number | M-OTDR-500D |
| Size & Display | 5.55 inch OLED touch screen, 1280x720 resolution |
| Wavelength (nm) | 1550 |
| Dynamic range(dB)2 | 24 |
| Power output | 5V 1A power output |
| UTP cable test | Test UTP cable connection status and display on the screen. Read the number on the screen. Detect the near-end, mid-end and far-end fault point of RJ45 cable connector, also can test shield cable |
| Length measurement | Network cable length measurement, up to 3km |
| Optical power meter | Wavelength:1625nm,1550nm,1490nm,1310nm,1300nm,850nm,measurement range, -70～+6dBm, for optical power testing and Fiber link loss relative measurement |
| Visual fault locator | 10mW visual fault locator with 650nm wavelength, emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 8KM |
| Output power | -5dBm~0dBm adjustable |
| Frequency | 270Hz/330Hz/1kHz/2kHz |
| Stability | CW, 土0.2dB/15min (Test after boot for 15min) |
| External power supply | Type-C 5V（2A） |
| Battery | Built-in 3.7V Lithium ion battery, 4000mAh. |
| Rechargeable | After charging 3 hours, normal working time 6 hours |
| Working Temperature | -10℃---+50℃ |
| Working Humidity | 30%-90% |
| Dimension / Weight | 183mm x 110mm x 36.5mm / 0.95kg |
