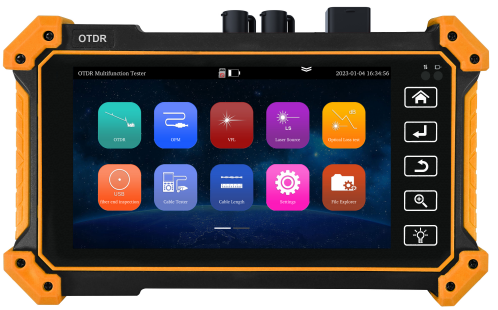

5.55 inch OTDR tester M-OTDR-500B with 1310 / 1550nm wavelength, 26 / 24dB dynamic range
Optical power meter, visual fault locator
Laser source, optical loss test, cable tester
Optical Time Domain Reflectometer
Specification:
Model number
M-OTDR-500B
Size & Display
5.55 inch OLED touch screen, 1280x720 resolution
Wavelength (nm)
1310 / 1550
Dynamic range(dB)2
26 / 24
Power output
5V 1A power output
UTP cable test
Test UTP cable connection status and display on the screen. Read the number on the screen. Detect the near-end, mid-end and far-end fault point of RJ45 cable connector, also can test shield cable
Optical power meter
Wavelength:1625nm,1550nm,1490nm,1310nm,1300nm,850nm,measurement range, -70～+6dBm, for optical power testing and Fiber link loss relative measurement
Visual fault locator
10mW visual fault locator with 650nm wavelength, emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 8KM
Output power
-5dBm~0dBm adjustable
Frequency
270Hz/330Hz/1kHz/2kHz
Stability
CW, 土0.2dB/15min (Test after boot for 15min)
External power supply
Type-C 5V（2A）
Battery
Built-in 3.7V Lithium ion battery, 4000mAh.
Rechargeable
After charging 3 hours, normal working time 6 hours
Working Temperature
-10℃---+50℃
Working Humidity
30%-90%
Dimension / Weight
183mm x 110mm x 36.5mm / 0.95kg
