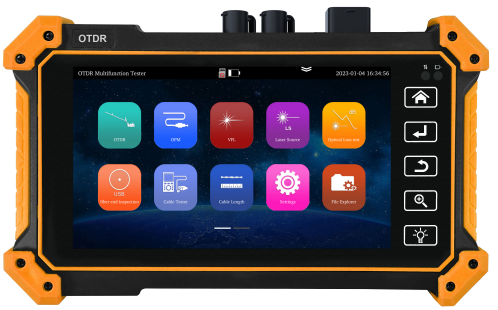

5.55 inch OTDR tester M-OTDR-500E with 1310 / 1550nm wavelength, 26 / 24dB dynamic range
Optical power meter, visual fault locator
Laser source, optical loss test, cable tester
Optical Time Domain Reflectometer
Cable tracer app with toner wand
Cable length, RJ45 cable TDR test
PING, IP scan, LLDP, PPPOE, FTP server
Specification:
Model number
M-OTDR-500E
Size & Display
5.55 inch OLED touch screen, 1280x720 resolution
Wavelength (nm)
1310 / 1550
Dynamic range(dB)2
26 / 24
Power output
5V 1A power output
UTP cable test
Test UTP cable connection status and display on the screen. Read the number on the screen. Detect the near-end, mid-end and far-end fault point of RJ45 cable connector, also can test shield cable
Length measurement
Network cable length measurement, up to 3km
Optical power meter
Wavelength:1625nm,1550nm,1490nm,1310nm,1300nm,850nm,measurement range, -70～+6dBm, for optical power testing and Fiber link loss relative measurement
Visual fault locator
10mW visual fault locator with 650nm wavelength, emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 8KM
Output power
-5dBm~0dBm adjustable
Frequency
270Hz/330Hz/1kHz/2kHz
Stability
CW, 土0.2dB/15min (Test after boot for 15min)
External power supply
Type-C 5V（2A）
Battery
Built-in 3.7V Lithium ion battery, 4000mAh.
Rechargeable
After charging 3 hours, normal working time 6 hours
Working Temperature
-10℃---+50℃
Working Humidity
30%-90%
Dimension / Weight
183mm x 110mm x 36.5mm / 0.95kg
