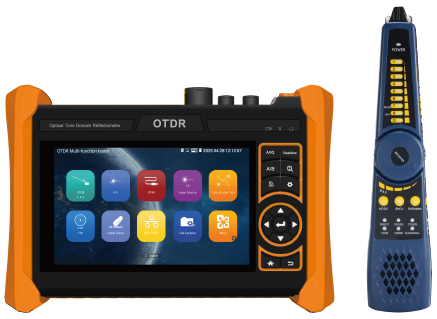

5.4 inch OTDR Tester M-OTDR-650E with 1310 / 1550nm wavelength, 32 / 30dB dynamic range
Optical Time Domain Reflectometer, optical loss test
Optical power meter, visual fault locator, laser source
UTP cable test, cable tracer app with toner wand
Wifi analyzer, PoE detection, RJ45 cable TDR test
FTP server, USB fip, flash light, IP scan, PPPOE
Cable length, network test, 5V, 2A power output
Specification:
Model number
M-OTDR-650E
Size & Display
5.4 inch IPS touch screen ,1920*1152 resolution
Wavelength (nm
1310/1550
Dynamic range(dB)2
32/30
Network Port
1000M LAN port, 10/100/1000M auto adapt
WIFI
Built in 2.4G WIFI, speeds150M
Power output
5V 2A power output
PoE detection
Display the standard PoE or Non-standard PoE, PoE voltage and cable connection status
UTP cable test
Test UTP cable connection status and display on the screen. Read the number on the screen. detect the near-end, mid-end and far-end fault point of RJ45 cable connector, can test shield cable
RJ45 TDR cable test
Support cable status and length, max 600m
Data monitor
Captures and analyzes the command data from controlling device, also can send hexadecimal
Network test
Trace route, Link monitor, DHCP server, port flashing, Ping test
Digital Cable tracer
Search BNC cable, network cable and telephone cable from the mess cables. Cable tracer and UTP cable test app in the same interface, also can search shield cable
Electroscope
Voltage range: AC12-1000V
Frequency: 50/60Hz
Alarm type: Sounds and light double alarms
Level: CAT.III 1000V / CAT.IV 600V;CE
Visual fault locator
10mW visual fault locator with 650nm wavelength, emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 8KM
Optical power meter
Wavelength:1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range ,-70 ～ +10 dBm, for optical power testing and Fiber link loss relative measurement
Laser source parameter
Laser type: FP-LD
Output wavelength: 1310/1550
Output power: -5dBm~0dBm
Frequency: 270Hz/330Hz/1kHz/2kHz
Stability: CW, 土0.2dB/15min (Test after boot for 15min) External power supply
DC 12V（1A）
Battery
Built-in 7.4V Li-ion battery, 5200mAh
Rechargeable
After charging 2.5 hours, normal working time 11 hours
Operation setting
OSD menu, select your desired language: English, Portuguese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Turkish, Deutsch, Serbian, Czech, Vietnamese etc.
Auto off
5-30 (mins)
Working Temperature
-10℃---+50℃
Working Humidity
30%-90%
Dimension / Weight
203mmX141mmX46mm / 1.90Kg
