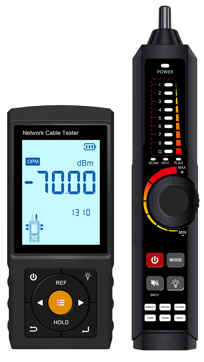

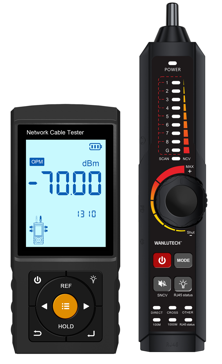

The multifunction cable tester M-CT-320D is designed for maintenance and installation of network cable, cable tracer, optical power meter and visual fault locator test in one equipment. The unit supports detect the near-end, mid-end and far-end fault point of RJ45 cable connector, and also supports PoE power supply protocol, measure the PSE power supply voltage and power. Installers and engineers take the all in one cable tester, making working conditions safer and increasing productivity.
3 inch screen, screen size 48*65mm
Cable tracer, search UTP cable, BNC cable from mess cable
PoE detector, support IEEE802.3af/at/bt supply power protocol, measure the PSE power supply voltage
Cable Length, max 600m
UTP cable test, UTP cable test, for network cable’s sequence and continuity
Network cable short-circuit test and the fault point of RJ45 cable connector
Optical power meter and visual fault locator
Specification:
Specification:
| Part number | M-CT-320D |
| LCD display | 3 inch screen, screen size 48*65mm |
| UTP cable test | Test UTP cable´s sequence, type and remote kit, quickly detect the near-end, mid-end and far-end fault point of RJ45 cable connector |
| Cable type | RJ45 Twisted pair, RJ11 telephone line, BNC cable and Weak current metal cable, etc. |
| The fault of RJ45 cable connector | Determine the fault point of RJ45 cable connector from local/remote indicator light |
| Cable Length | Test cable length, measurement range 600M |
| Port flashing | Search the Ethernet switch port and detect the connected network port (100/ 1000M) |
| PoE detector | Support IEEE802.3af/at/bt supply power protocol |
| PSE IN/OUT | Measure the PSE power supply voltage and power |
| Optical power meter | Wavelength (nm): 850/1300/1310/1490/1550/1625nm. Measurement range , -70 ～ +10 dBm |
| Visual fault locator | 10mW power output, wavelength of 650nm, stable and pulsed modes. Emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 10KM |
| Battery | Li battery |
| Working Temperature | -10℃ -- +50℃ |
| Working Humidity | 30% -- 90% |
| Emitter Dimension | 142mm*64mm*30mm / 0.18kg |
| Dimension / Weight | 126mm x 83mm x 33mm / 0.32kg |
