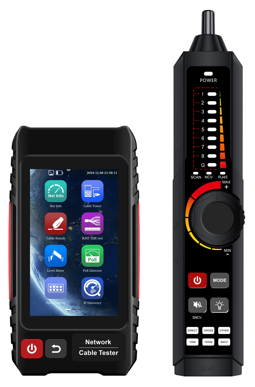

The multi-functional cable tester M-CT-640B, it is a practical tool for installation and maintenance of technical personnel in security monitoring, communication wires, integrated wiring and other weak current systems.
Specification:
| Part number | M-CT-640B |
| Screen & Display | 4 inch IPS touch screen, 800*480 resolution |
| Transmit Signal | Digital signal (decisively rejects noise and false signals) |
| Cable Types | Supports RJ45 twisted pair, RJ11 telephone cable, BNC video cable, and low-voltage metal cables |
| UTP Cable Test | Tests any two or more wires in a network cable. The screen displays the connection sequence, 1000/100M, and cable number. The receiver is identified through indicators |
| Continuity Test | Emitter: Minimum recognition length of 10cm Receiver: Minimum recognition length of 1m |
| Short Circuit Detection | Supports network cable short circuit detection |
| Length Measurement | Measure opens of network cables ,max measurement length up to 3000 meters. Accuracy: Cable length x 3% ± 1m |
| RJ45 cable TDR test | Test cable’s pair status, length, attenuation reflectivity, impedance, skew, and other parameters. Maximum measurable length up to 180 meters |
| Port Flashing | Quickly locates ports connected to Ethernet switches and other devices. |
| PoE Detector | Supports IEEE802.3BT/AT/AF and non-standard protocol detection. Displays power supply voltage, power supply pins, and pin polarity. |
| Network tool | IP discovery, IP address scan, PING test, LLDP/CDP detection, Port flashing, PPPOE dial-up, FTP server, etc. |
| Optical Power Meter | Wavelength (nm): 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm Power range (dBm): -70 to +6 dBm |
| Visual fault locator | Emits visible red laser to detect fiber optic line breaks, cracks, bends, and other faults. |
| Emitter battery Power | 3.7V 4000mAh lithium-ion rechargeable battery (working time about 6 hours) |
| Receiver battery Power | 3.7V 2000mAh lithium-ion rechargeable battery (working time about 12 hours) |
| Operating Temperature | -10℃---+50℃ |
| Operating Humidity | 30%-90% |
| Emitter Dimensions | 154mm x 86mm x 40mm / 0.3Kg |
| Receiver Dimensions | 218mm x 48mm x 32mm / 0.15Kg |
