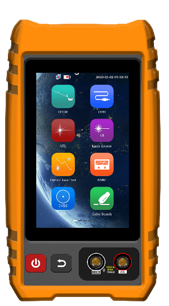

4 inch OTDR Tester M-OTDR-330D with 1550nm wavelength, 24dB dynamic range
4 inch touch screen, 800*480 resolution
Internal storage and external TF card, support FTP
Report saved as EXCEL, PDF, or screenshots format etc.
Digital multimeter with isolation protection
One Gigabit network port, support Ping and scan IP address etc.
RJ45 TDR cable’s status and length, max 600meter
Cable length, the max length up to 3km
Cable tester, UTP cable etc. continuity test
Stable laser source, optical power meter, visual fault locator
Cable tracer app with toner wand
Specification:
| Part number | M-OTDR-330D |
| Size & Display | 4 inch touch screen, 800*480 resolution |
| Wavelength (nm) | 1550 |
| Dynamic range(dB)2 | 24 |
| Network Port | 1000M LAN port, 10/100/1000M auto adapt |
| UTP cable test | Test UTP cable connection status and display on the screen. Read the number on the screen. detect the near-end, mid-end and far-end fault point of RJ45 cable connector, can test shield cable |
| RJ45 TDR cable test | Support cable status and length, max 600m |
| USB Type C port | Supports MTP media transfer protocol and can connect to a computer to transfer internal storage data |
| Data monitor | Captures and analyzes the command data from controlling device, also can send hexadecimal |
| Network test | Trace route, Link monitor, DHCP server, port flashing, Ping test |
| Length test | Cable length, the max length up to 3km |
| Digital Cable tracer | Search BNC cable, network cable and telephone cable from the mess cables. Cable tracer and UTP cable test app in the same interface, also can search shield cable |
| Visual fault locator | 10mW visual fault locator with 650nm wavelength, emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 8KM |
| Digital multimeter | AUTO DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement, with a testing speed of 3 times per second and a reading range of -6600 to+6600 |
| Optical power meter | Wavelength:1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range ,-70 ～ +6 dBm, for optical power testing and Fiber link loss relative measurement |
| Laser type | FP-LD |
| Laser source output wavelength | 1550 |
| Laser source output power | -5dBm~0dBm |
| Laser source frequency | 270Hz/330Hz/1kHz/2kHz |
| Laser source stability | CW,土0.2dB/15min (Test after boot for 15min) |
| External power supply | DC 5V (2A) USB Type-C |
| Battery | Built-in 3.7V Li-ion battery, 4000mAh |
| Rechargeable | After charging 3.5 hours, the normal working time 6 hours |
| Operation setting | OSD menu, select your desired language: English, Portuguese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Turkish, Deutsch, Serbian, Czech, Vietnamese etc. |
| Auto off | 5-30 (mins) |
| Working Temperature | -10℃ - +50℃ |
| Working Humidity | 30% - 90% |
| Dimension / Weight | 160mm x 100mm x 45mm / 0.36kg |
