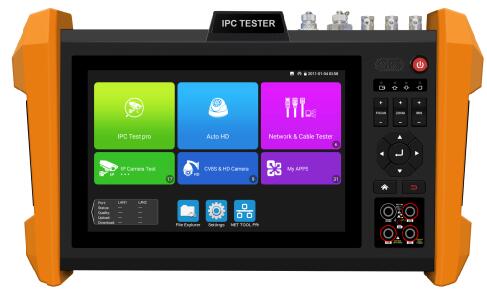

7 inch IP Camera Tester M-IPC-750G
Cvbs camera test, VGA input
IP camera test, support onvif, 4K, 8K, H.264 and H.265
8MP CVI, 8MP TVI, 8MP AHD camera test, support TVI 5.0 Audio test
8MP EX-SDI, HD-SDI, 3G-SDI
Cable tracer app with toner wand
DC12V 3A, DC24V 2A and 48V / 30W PoE power output
TDR cable open circuit and short circuit measurement
Digital Multimeter, Optical power meter and Visual fault locator
Video level meter for analog camera, TVI camera, CVI camera, AHD camera
One Gigabit SFP optical fiber module port for optical fiber network testing
Laser distance meter, measurement range 100m, accuracy±3mm
Built- in camera, support camera Lens focal distance test
Specification:
| Model Number |
M-IPC-750G |
||
| Display |
New 7
inch IPS touch screen, 1280*800 resolution |
||
| Video Mode |
CVBS |
1 channel BNC input & 1
channel BNC looped output, NTSC/PAL (Auto adapt) |
|
| Analog video level meter, peak
video signal level, SYNC signal level, Color bar chroma level measurement |
|||
| PTZ control, RS485 control,
Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P,
Samsung, Panasonic etc |
|||
| IP camera test 8K H.265 / 4K H.264 |
IP
Discovery / Quick ONVIF / IPC test / RTSP play / Client APK |
||
| Rapid Video |
Auto view the video, create
testing report |
||
| Hik test tool |
support
batch activate HIKVISION cameras and modify IP address, modify password etc.
Self-defined modify channel name, can quickly change H.264 and H.265 video,
open wide dynamic mode. Factory restore, etc. |
||
| Dahua test tool |
support
batch activate DAHUA cameras and modify IP address, username and password.
Self-defined modify channel name. |
||
| IP & CVBS test |
IP & CVBS test at the same
time, converter test from analog to digital with dual test window |
||
| Coaxial HD test |
8MP TVI camera test, 3840 x 2160P 15 FPS, UTC control & call OSD menu, support TVI 5.0 Audio test |
||
| 8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control & call OSD menu |
|||
| 8MP AHD test, 3840 x 2160P 12.5/15 FPS, UTC control & call OSD menu |
|||
| 8MP EX-SDI, HD-SDI, 3G-SDI
test, UTC control & call OSD menu |
|||
| VGA input |
Up to 1280*800 60FPS |
||
| Zoom Image |
4x zoom, enlarge image, Screen
snapshot, record, save, view and record and play back |
||
| Power output |
PoE power output |
48V PoE power output, max
power 30W |
|
| DC24V / 12V power |
DC24V 2A,
DC12V 3A power output |
||
| DC 5V power |
DC5V
2A power output, can connect USB camera, USB and Mouse, as power bank |
||
| TDR cable test |
BNC
cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6
cable’s length and short circuit. Measurement range 1.2KM |
||
| Digital cable tracer |
Search
BNC cable, network cable and telephone cable from the mess cables, more accurately |
||
| UTP cable test |
Test UTP cable connection
status and display on the screen. Read the number on the screen,and
detect near-end, mid-end and far-end fault test of RJ45 cable plug |
||
| RJ45
cable TDR test |
Test cable pair status, length, attenuation, reflectivity, impedance, skew etc., measurement max range 180M. |
||
| Gigabit
SFP |
Gigabit
SFP optical fiber module |
||
| Built-In camera |
Built-In
Camera Pixels: 5000,000 pixels, support camera focus detection |
||
| Laser Distance meter |
Measurement range100m, accuracy±3mm, Laser class 2, Laser type
635nm, Power output <1mW |
||
| Digital Multimeter |
AC/DC Voltage, AC/DC current,
Resistance, Capacitance, Data hold, Relative measurement, Continuity testing.
Testing speed: 3 times / seconds, Data range -6600～+6600. |
||
| Optical power meter |
Calibrated Wavelength(nm): 850/1300/1310/1490/1550/1625nm,Power
range(dBm): -70～+10dBm |
||
| Visual fault locator |
Test fiber´s bending and breakage |
||
| TesterPlay |
Screen projection: Tester, mobile phone and PC display at the same time (For android version mobile phone) |
||
| Network test |
Trace
route, Link monitor, DHCP
server, port flashing, |
||
| Wi-Fi |
Built in WIFI, speeds 150M,
display wireless camera image |
||
| Audio test |
1 channel audio signal input,
test whether sound normal, 1 channel audio signal, to connect headphone |
||
| Data monitor |
Captures and analyzes the
command data from controlling device, also can send hexadecimal |
||
| PSE / PoE test |
Measurement PoE switch or PSE
power supply voltage and cable connection status |
||
| Drop-down menu |
You can select PoE power
switch, IP setting, CVBS, LAN info, etc in any interface |
||
| External power supply |
DC 12V 2A |
||
| |
Built-in 7.6V Lithium polymer battery, 7800mAh |
||
| Rechargeable |
After fast charging 3.5 hours, normal
working time 16 hours |
||
| Operation setting |
OSD menu,
select your desired language: English, Portuguese, Korean, Russian, Italian,
French, Polish, Spanish, Japanese, Turkish, Deutsch, Serbain, Czech,
Vietnamese etc |
||
| Auto off |
5-30 (mins) |
||
| Working Temperature |
-10℃ --- +50℃ |
||
| Dimension |
276mm
x 163mm x 44mm (Tester); 345mm x 305mm x 100mm (box) |
||
| Weight |
1200g
(Tester); 2500g (Tester with spare parts, black package, box) |
||
